detail pto ZF
Technical Specifications
| Code | Ratio | Torque Nm/Kgm | Speed rpm | Power Kw | Rotation | Control | Mounting | Connection |
|---|---|---|---|---|---|---|---|---|
| 935P5411DTKD | 1:1 | 479/49 | 513 | 26 | Right(cw) | Pneumatic | Rear | Iso |
| 937P5411ATKD | 1:1 | 479/49 | 513 | 26 | Right(cw) | Pneumatic | Rear | Iso |
| 935P5422DKCL | 1:1 | 286/29,2 | 540 | 20,3 | Left(ccw) | Pneumatic | Rear | Iso |
| 937P5422AKCL-1,33 | 1:1,33 | 343/35 | 560 | 20 | Left(ccw) | Pneumatic | Rear | Iso |
| 932P43229S75 | 1:1 | 196,1/20 | 600 | 12,5 | Left(ccw) | Pneumatic | Side Left | Uni |
MERCEDES-BENZ

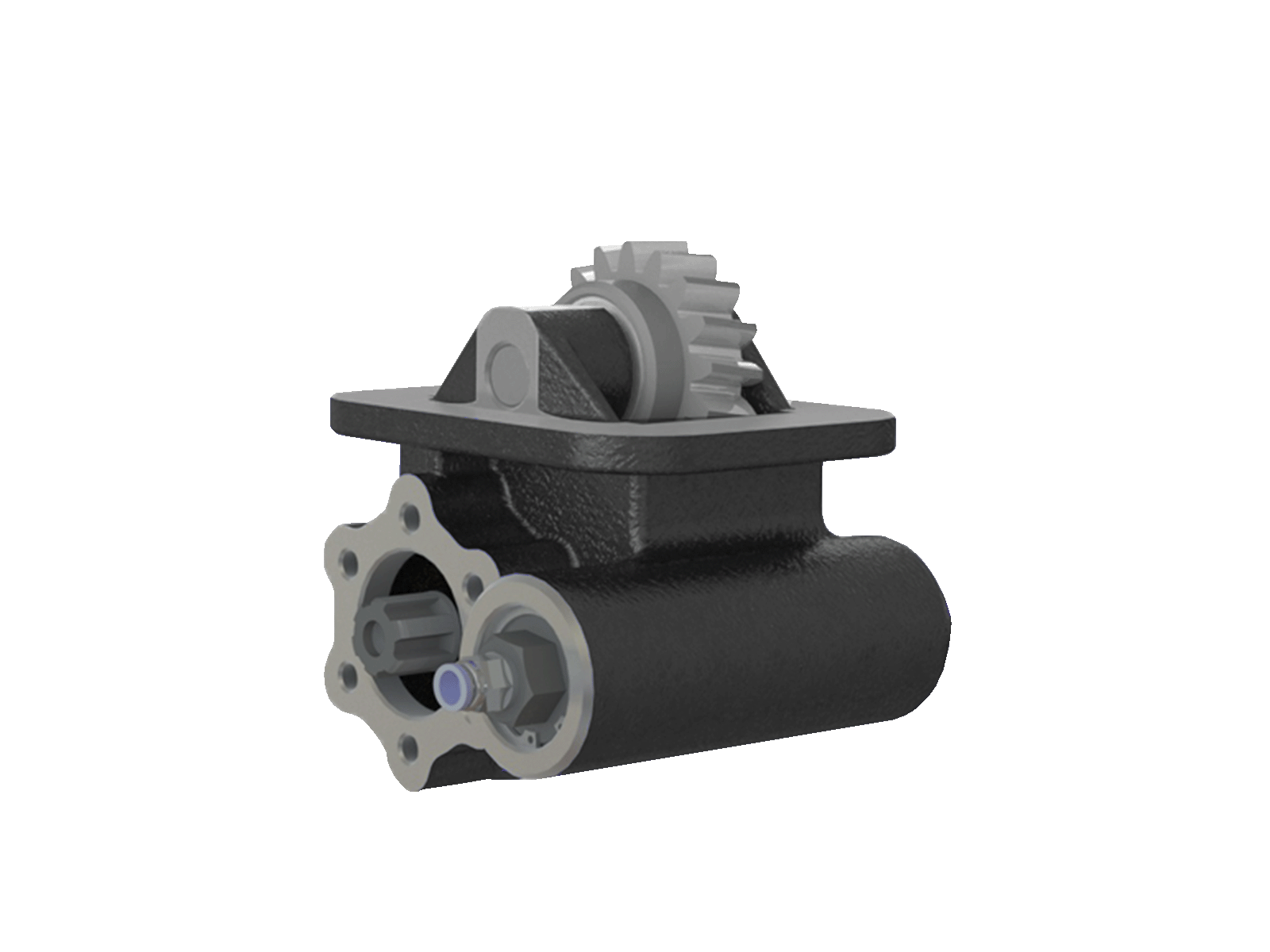

PTO ZF 9S75
MERCEDES-BENZ
Other PTO's for
Accessories
Optional
-
Joysticks for PTO
-
Switches for PTO
-
Cable Controls for PTO
-
Washers for PTO
-
Studs and Nuts for PTO
Transmission: ZF ECOMID 9 S75 (13,16\9,56) (B:252), GV 80
Vehicles; MERCEDES: 823-923-2521-2524-3224; LEICHT ATEGO: 817-917-823-923-1217-1317-1517-1323/ BMC PRO: 522-617-620-622-625-822/ FORD: 1826-2526; CARGO: 1824-2524-2524D-2534/ FARGO: 19.260-26.260-32.260/ DAF: 55.150-55.180-55.210-55.230/ VOLVO FL6/ IVECO: 150E18-160E22-180E25 (2012 MODEL)
Cardan Shaft: C9311316 (Wera Hydraulic cardan shaft code)
