details valves
| Code | Displacement l/min | Max. Pressure Bar | Max Pneumatic Pressure Bar | Weight Kg |
|---|---|---|---|---|
| 3PA10HVS | 180 | 190 | 12 | 6 |
| 3PA10HVS-H | 180 | 250 | 12 | 6 |
Technical Specifications

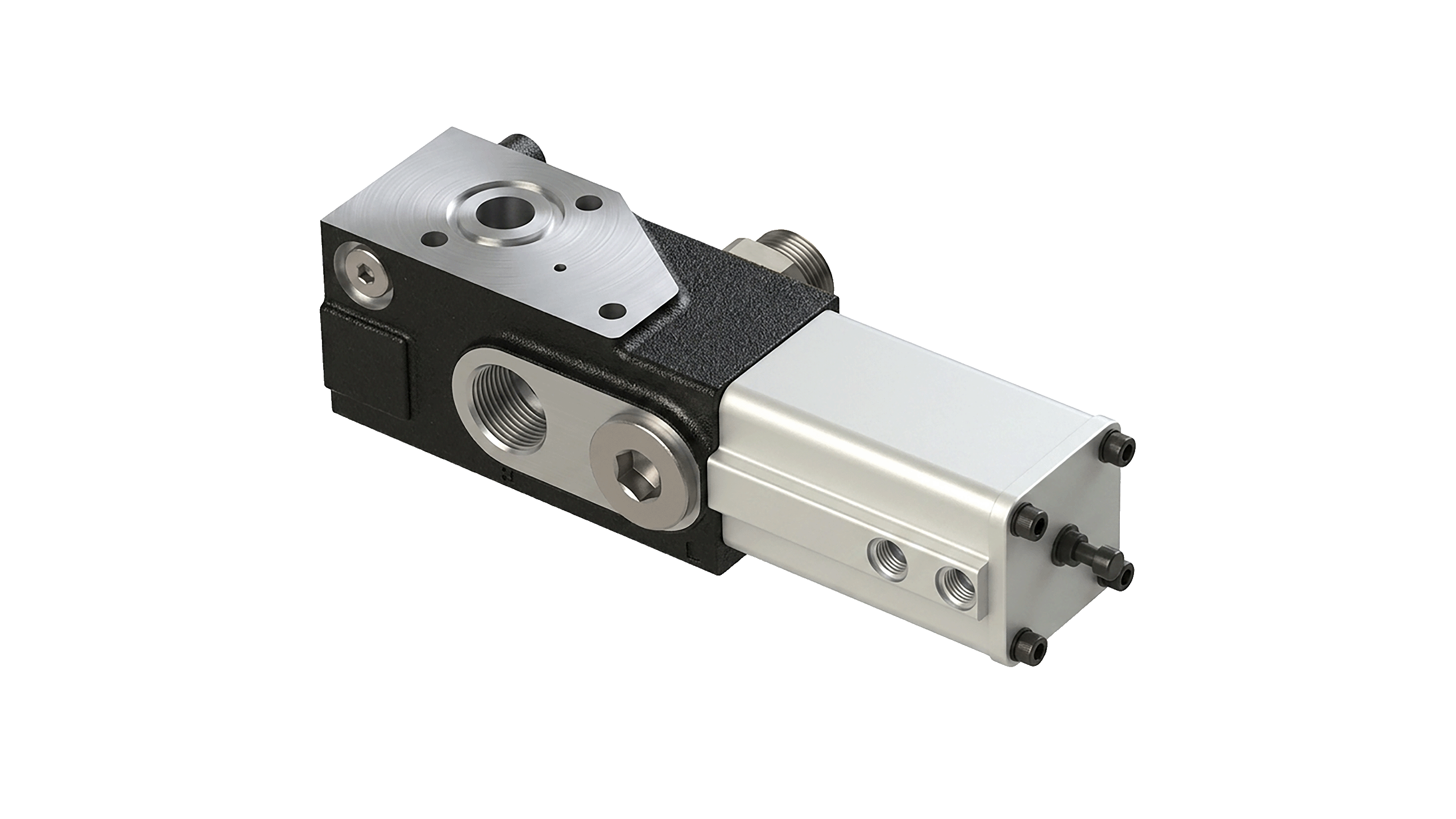

Directional Check Valve HV
