detail pto ZF
Technical Specifications
| Code | Ratio | Torque Nm/Kgm | Speed rpm | Power Kw | Rotation | Control | Mounting | Connection |
|---|---|---|---|---|---|---|---|---|
| 935P5411DTKD | 1:1 | 479/49 | 513 | 26 | Right(cw) | Pneumatic | Rear | Iso |
| 937P5411ATKD | 1:1 | 479/49 | 513 | 26 | Right(cw) | Pneumatic | Rear | Iso |
| 935P5422DKCL | 1:1 | 286/29,2 | 540 | 20,3 | Left(ccw) | Pneumatic | Rear | Iso |
| 937P5422AKCL-1,33 | 1:1,33 | 343/35 | 560 | 20 | Left(ccw) | Pneumatic | Rear | Iso |
MAZ

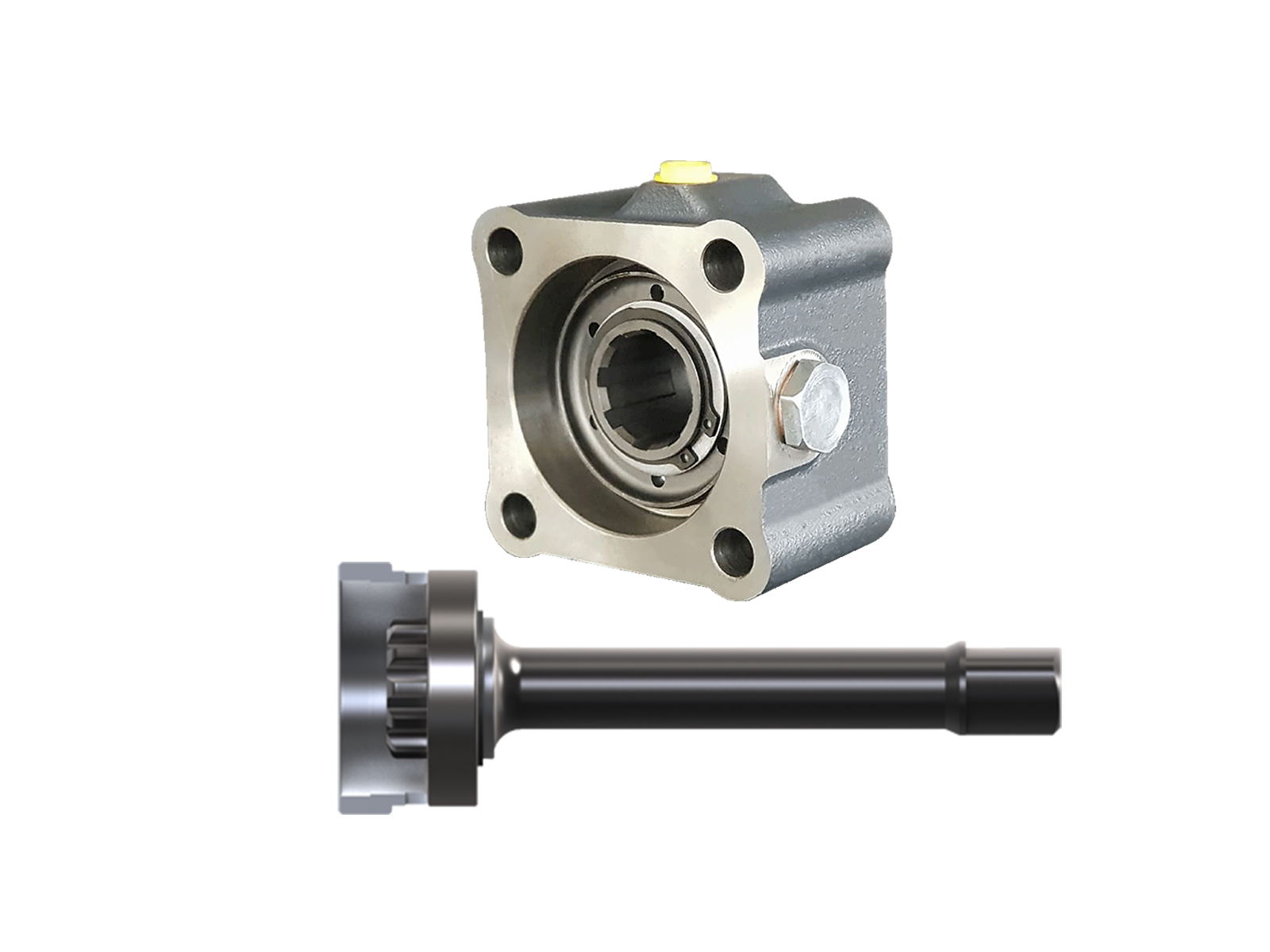

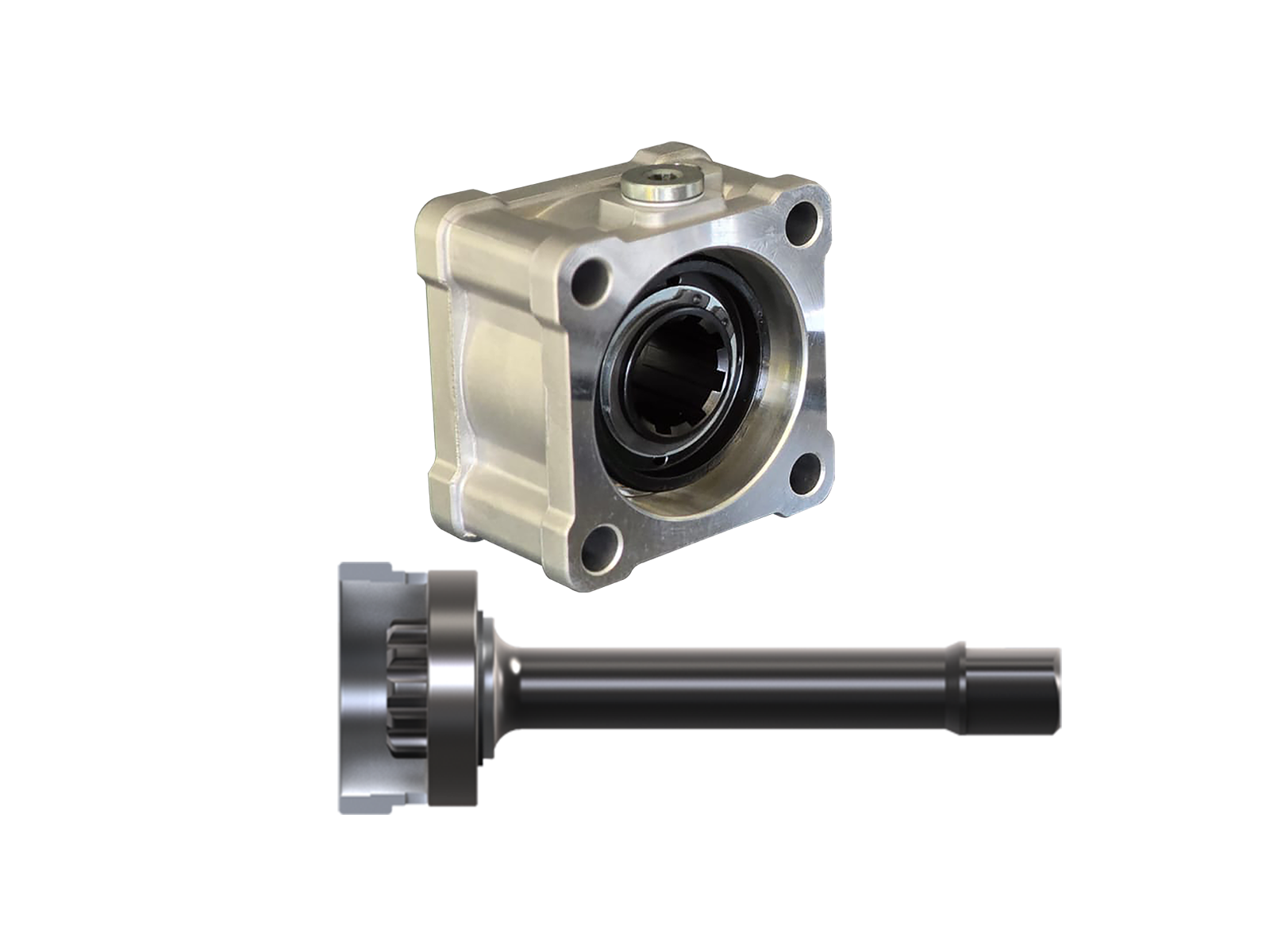

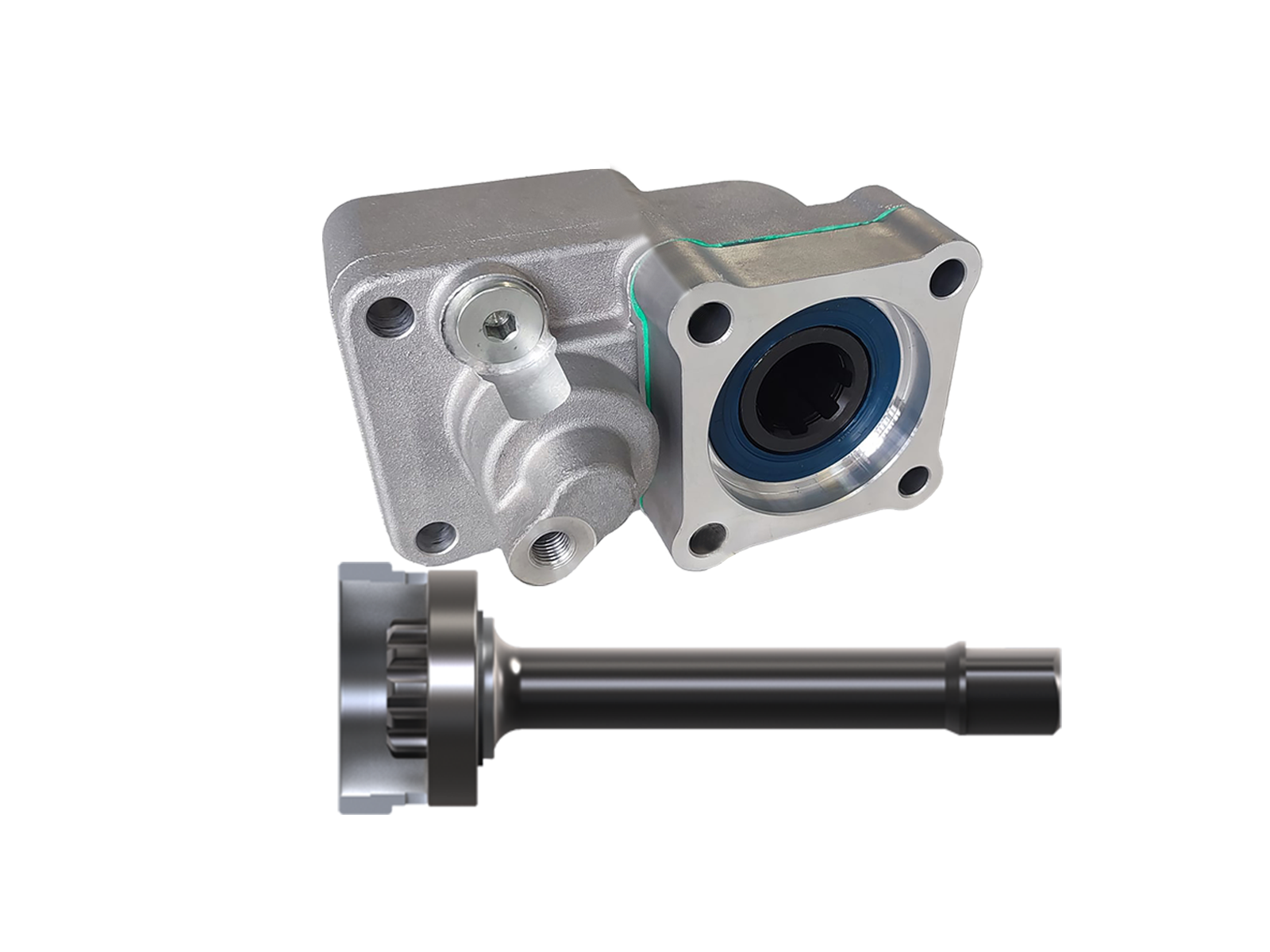

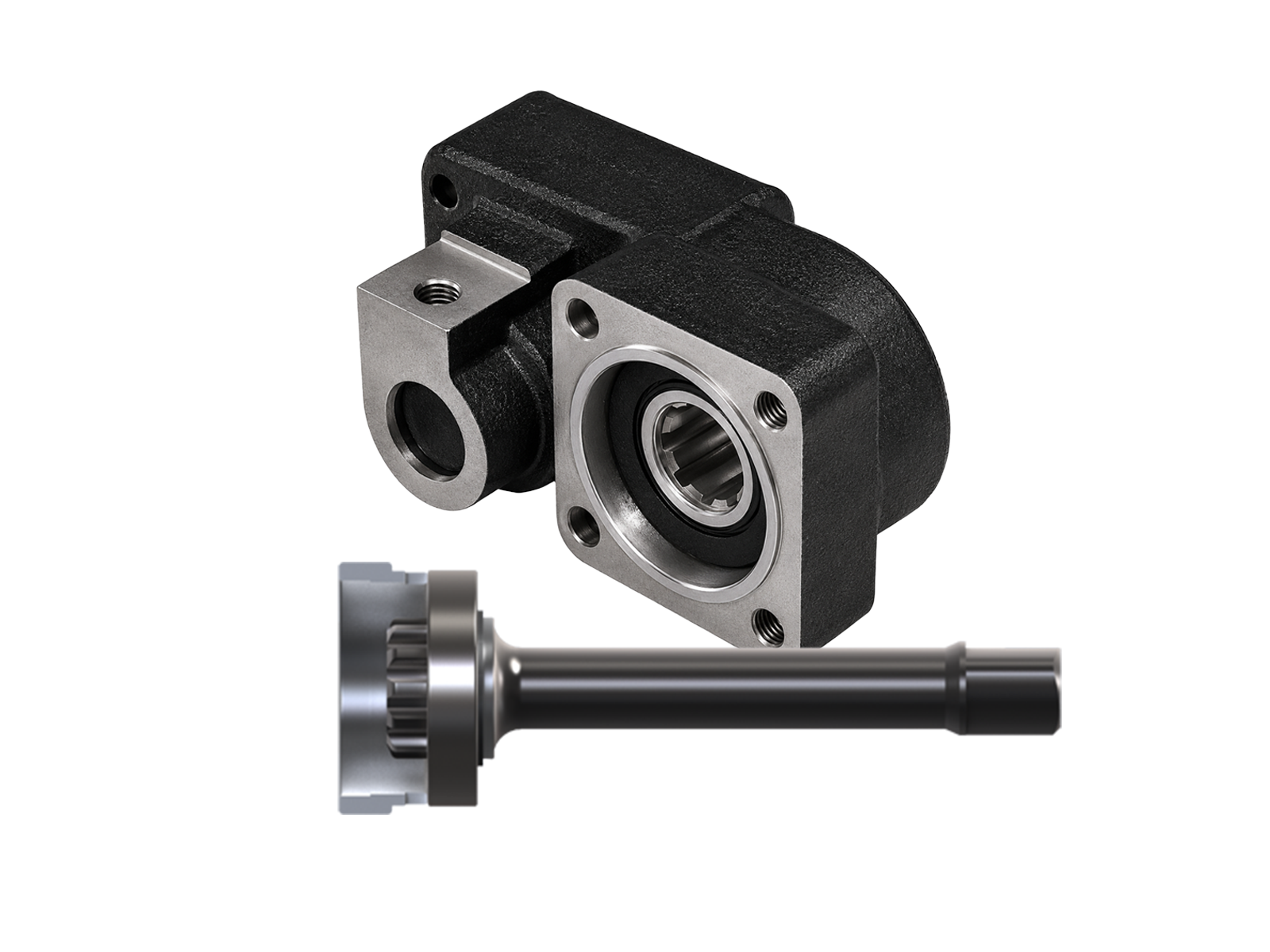

PTO ZF ECOSPLIT 16S130 ISO
MAZ
Other PTO's for
Accessories
Optional
-
Joysticks for PTO
-
Switches for PTO
-
Cable Controls for PTO
-
Washers for PTO
-
Studs and Nuts for PTO
Transmission: ZF ECOSPLIT 16 S130-150-160-190-220 (14,29-17,28-17,06-13,80), 16 S1650, 8 S35, 16 S1600 (13,68-16,47) (B:215), ZF ECOSPLIT 16 S112 (17,28), 16 K130 (14,29), 16 K112-16-112(13,68), 16 S220 (B:197)
Vehicles; MAN (SILENT): 16.181-16.281-19.280-19.332-19.422-25.372- 26.280-26.281-26.231-26.321-32.281-32.365-33.281 / MERCEDES, EURO MERCEDES: 1935-2228-2232-2433-2528-2624-2628-2633-3828-4028/ DAF: 33.300-95.330-95.400/ MERCEDES SAURER: 26.35/ STEYR/ MAZ 54.326; 64.226
Cardan Shaft: C9311630-200 or C9311630-213 or C9311630-218 (Wera Hydraulic cardan shaft code)
