detail pto ZF
Technical Specifications
| Code | Ratio | Torque Nm/Kgm | Speed rpm | Power Kw | Rotation | Control | Mounting | Connection |
|---|---|---|---|---|---|---|---|---|
| 935P5411DTKD | 1:1 | 479/49 | 513 | 26 | Right(cw) | Pneumatic | Rear | Iso |
| 937P5411ATKD | 1:1 | 479/49 | 513 | 26 | Right(cw) | Pneumatic | Rear | Iso |
| 935P5422DKCL | 1:1 | 286/29,2 | 540 | 20,3 | Left(ccw) | Pneumatic | Rear | Iso |
| 937P5422AKCL-1,33 | 1:1,33 | 343/35 | 560 | 20 | Left(ccw) | Pneumatic | Rear | Iso |
MAZ

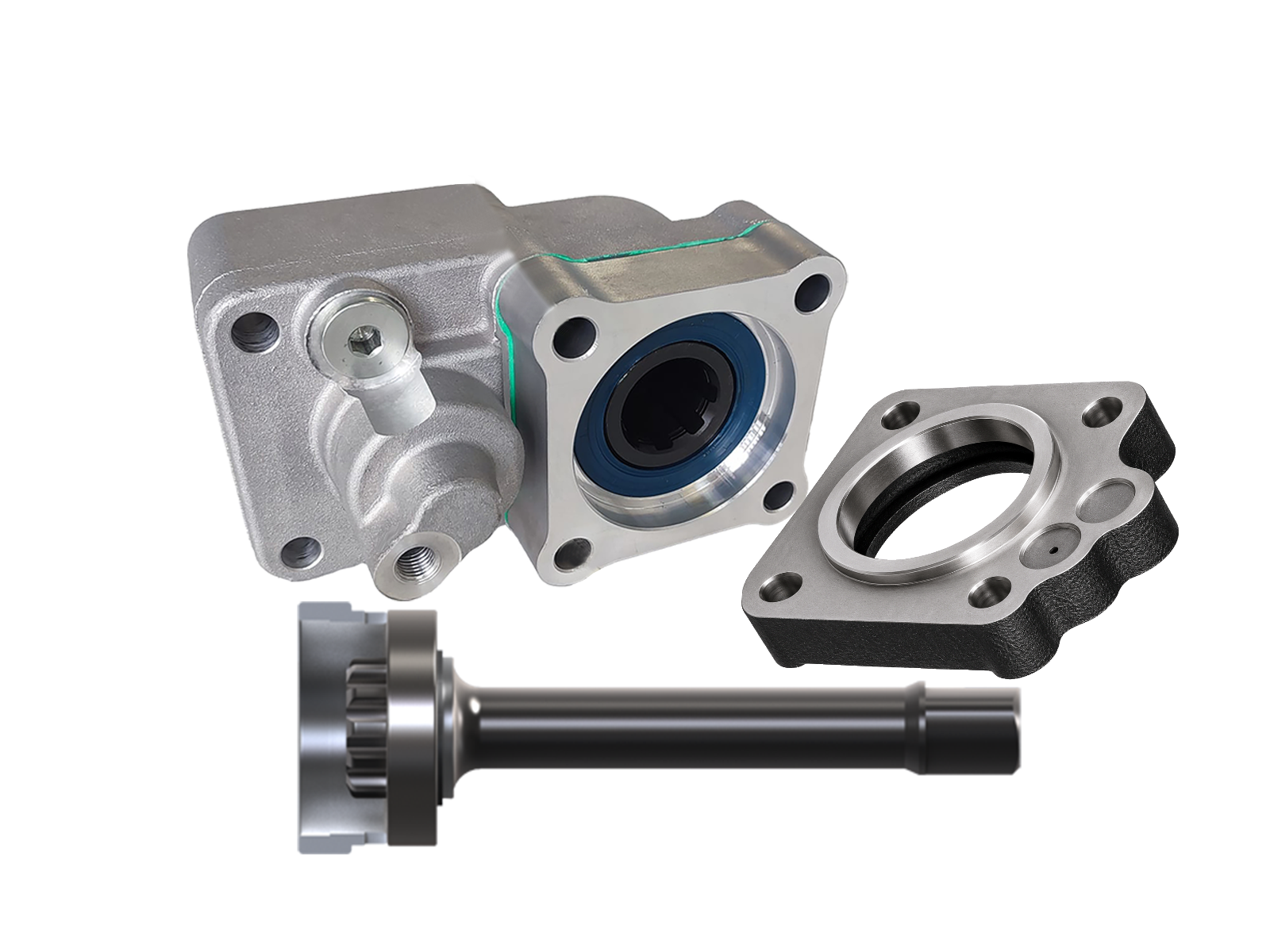

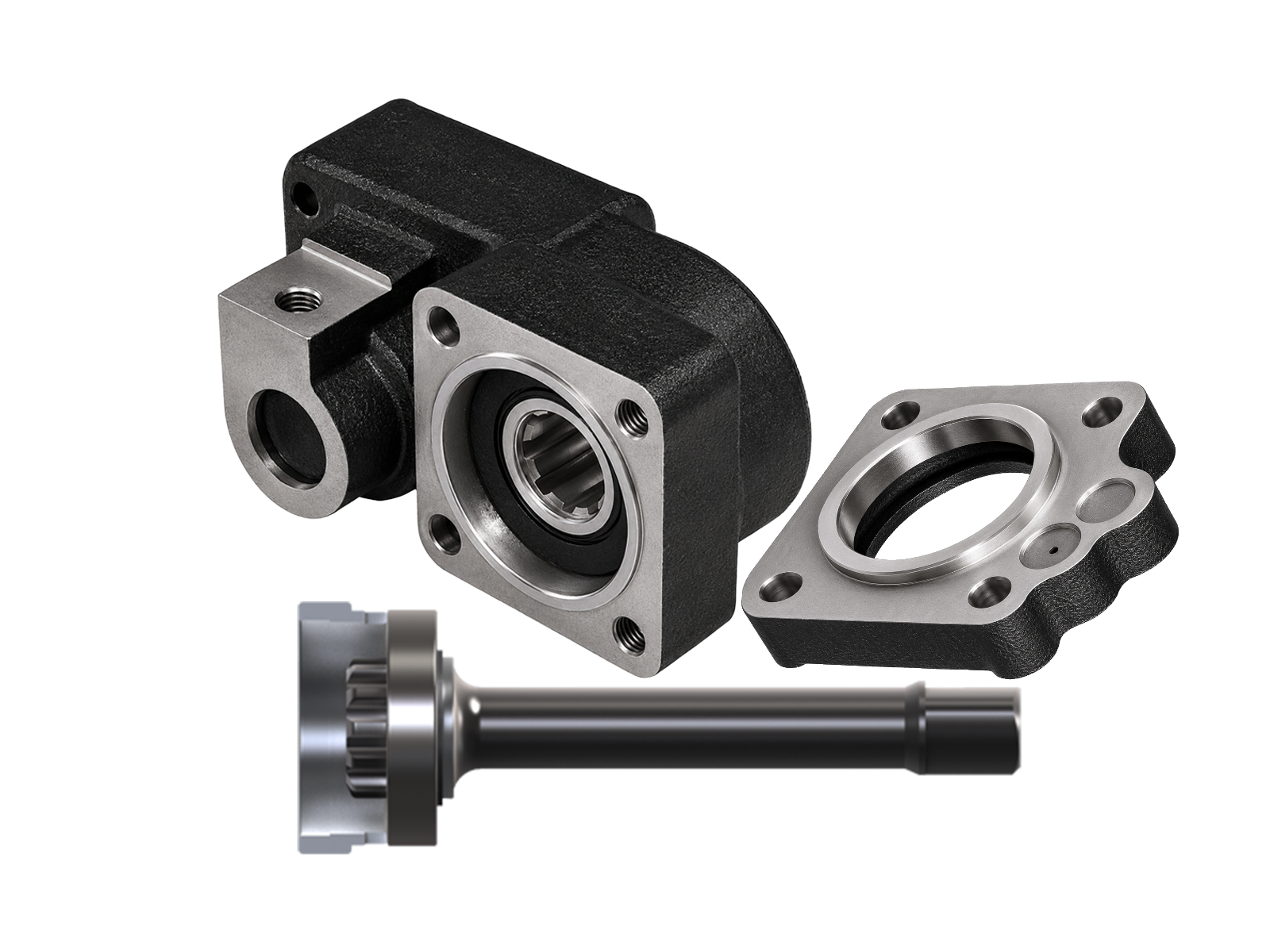

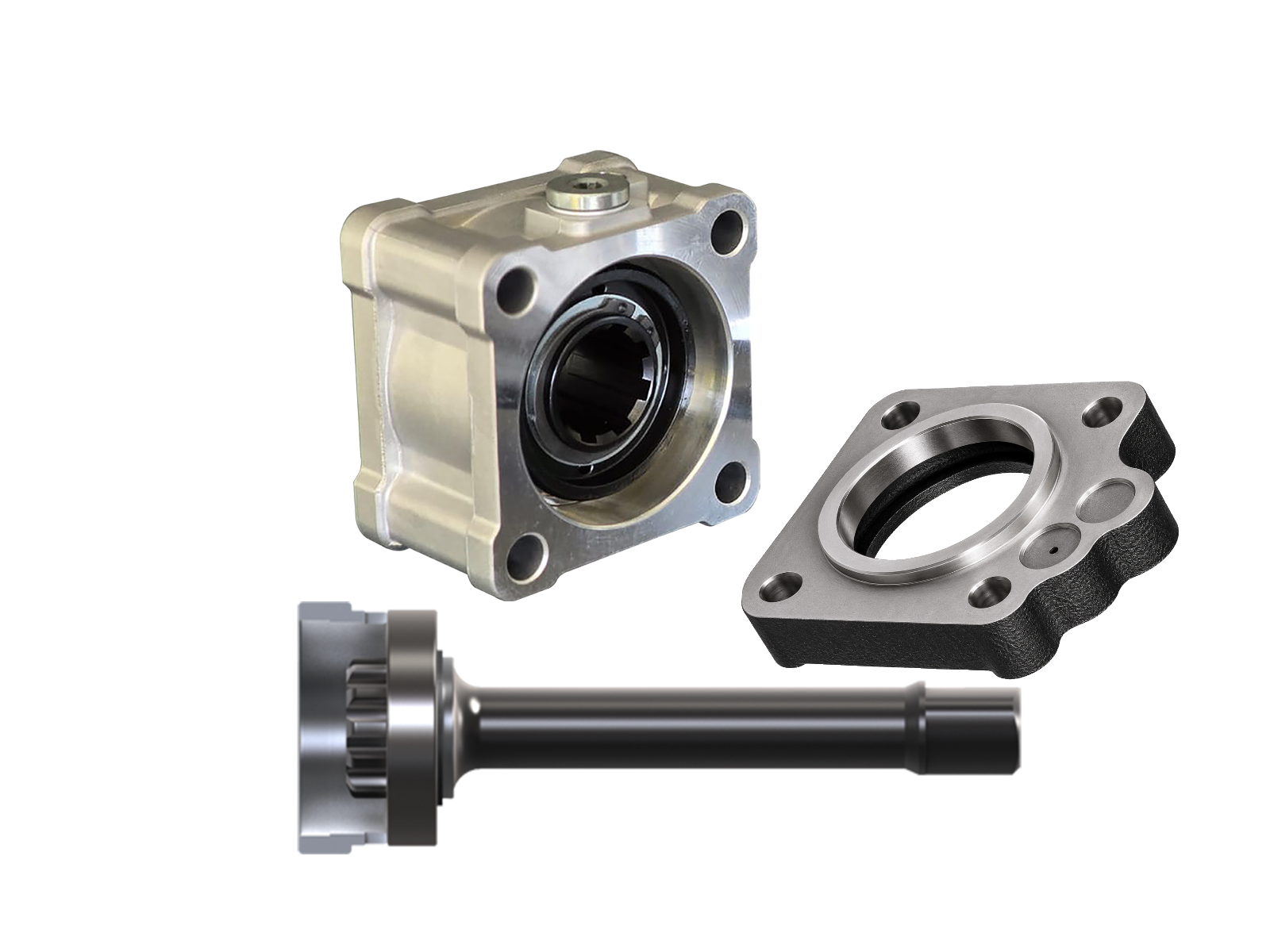

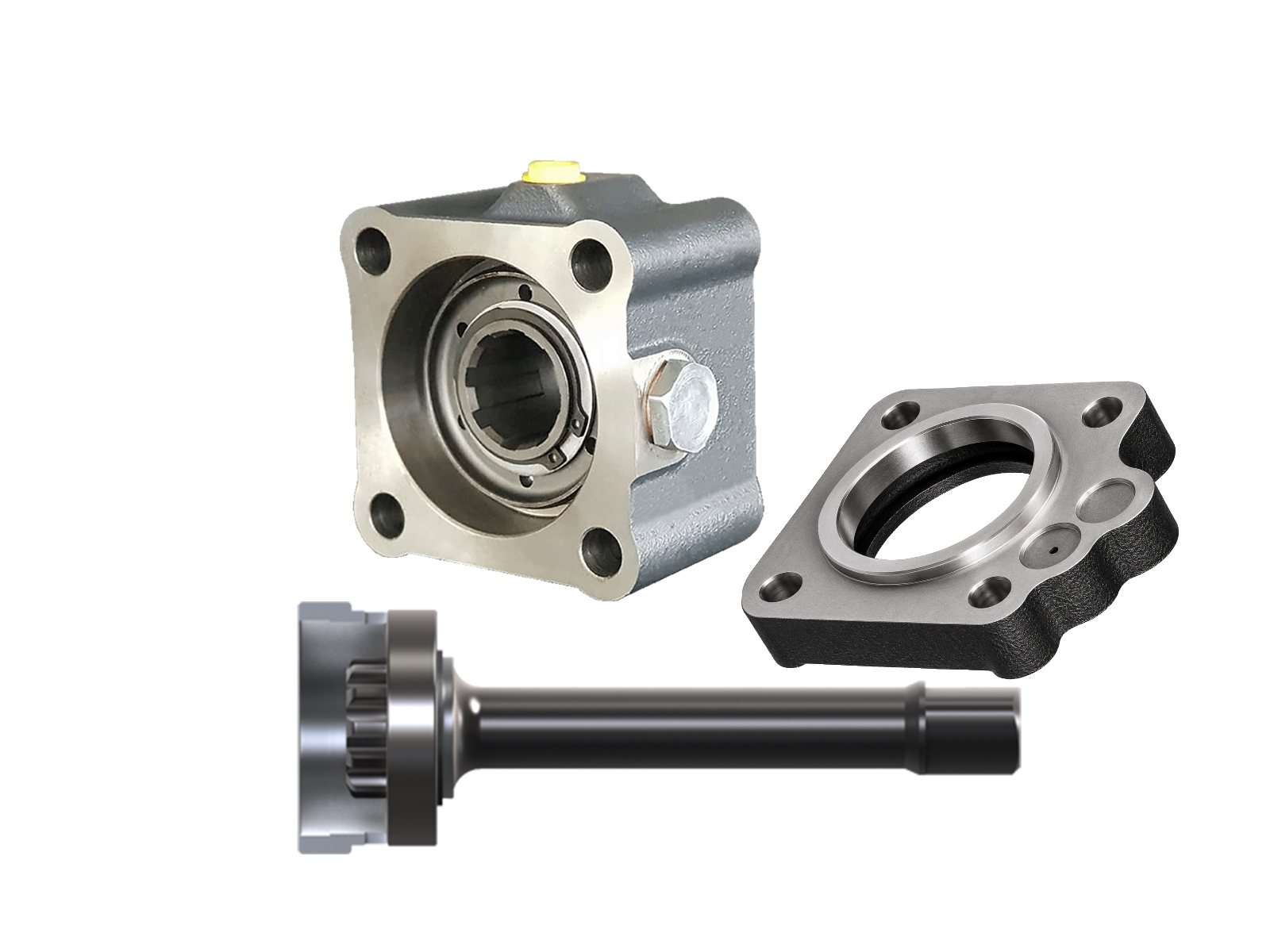

PTO NEW ECOSPLIT 16S2521TO INTARDER ISO
MAZ
Other PTO's for
Accessories
Optional
-
Joysticks for PTO
-
Switches for PTO
-
Cable Controls for PTO
-
Washers for PTO
-
Studs and Nuts for PTO
Transmission: ZF NEW ECOSPLIT 16 S2521T0(13,80) + PLATE(B:250), 16 S2221T0(16,41), 16 S181IT (16,41), 16 S222DD, 16 S252, 16 AS2200, 12 AS2530T0(1233), 12 AS1800, 16 AS2630, 16 S231, 16 S2321, 16 S2331, 12 S2131, 12 S2331, 12 S2831, 16 S1631, 8 S1831, 16 S1831, 8 S1931, 16 S1931, 16 S2031, 8 S2231, 16 S2231, 16 S2531, 16 S2731IT INTARDER
Vehicles; MAN: TGA 18.460 - 18.460A - 14.463 - 39.390 - 41.480, TGS 41.480 - 41.540 - 41.450, 19430, 39390; MAN EUROPE 6X4/ IVECO 480 STRAILS/ RENAULT PREMIUM 440 DXI/ DAF: CF 85.330/ MAZ 544069
Cardan Shaft: C9311615 (Wera Hydraulic cardan shaft code) + Astronic Plate PLTZ02 (Wera Hydraulic plate code)
