detail pneumatic controls
| Code | Product Type | Max. Pressure Bar | Air Inlet | Air Outlet | Air Exhaust | Temperature | Permissible Distance (mm) | Weight Kg |
|---|---|---|---|---|---|---|---|---|
| 6432PP | 3x2 Pedal-Pedal | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | Min. 0-Max.10 | 0,77 |
| 6432PS | 3x2 Pedal-Spring | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | Min. 0-Max.10 | 0,77 |
| 6452PP | 5x2 Pedal-Pedal | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | Min. 0-Max.10 | 0,85 |
| 6452PS | 5x2 Pedal-Spring | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | Min. 0-Max.10 | 0,85 |
Technical Specifications

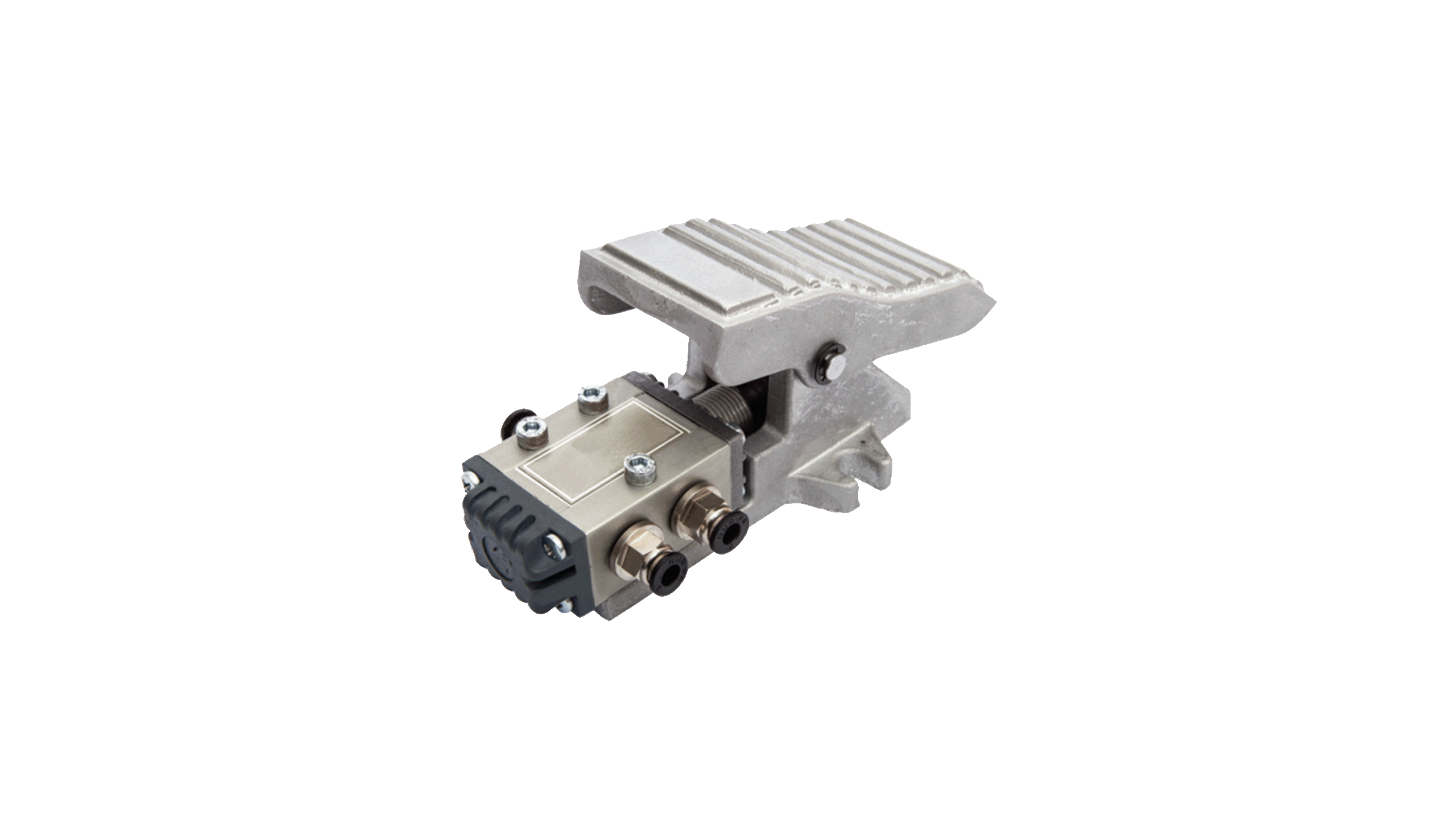

Air Valves Pedal type
