detail pneumatic controls
| Code | Product Type | Max. Pressure Bar | Air Inlet | Air Outlet | Air Exhaust | Temperature | Weight Kg |
|---|---|---|---|---|---|---|---|
| 6432C | 3x2 Pull | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | 0,20 |
| 6432CS | 3x2 Pull-Spring | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | 0,20 |
| 6452C | 5x2 Pull | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | 0,27 |
| 6452CS | 5x2 Pull-Spring | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | 0,27 |
Technical Specifications

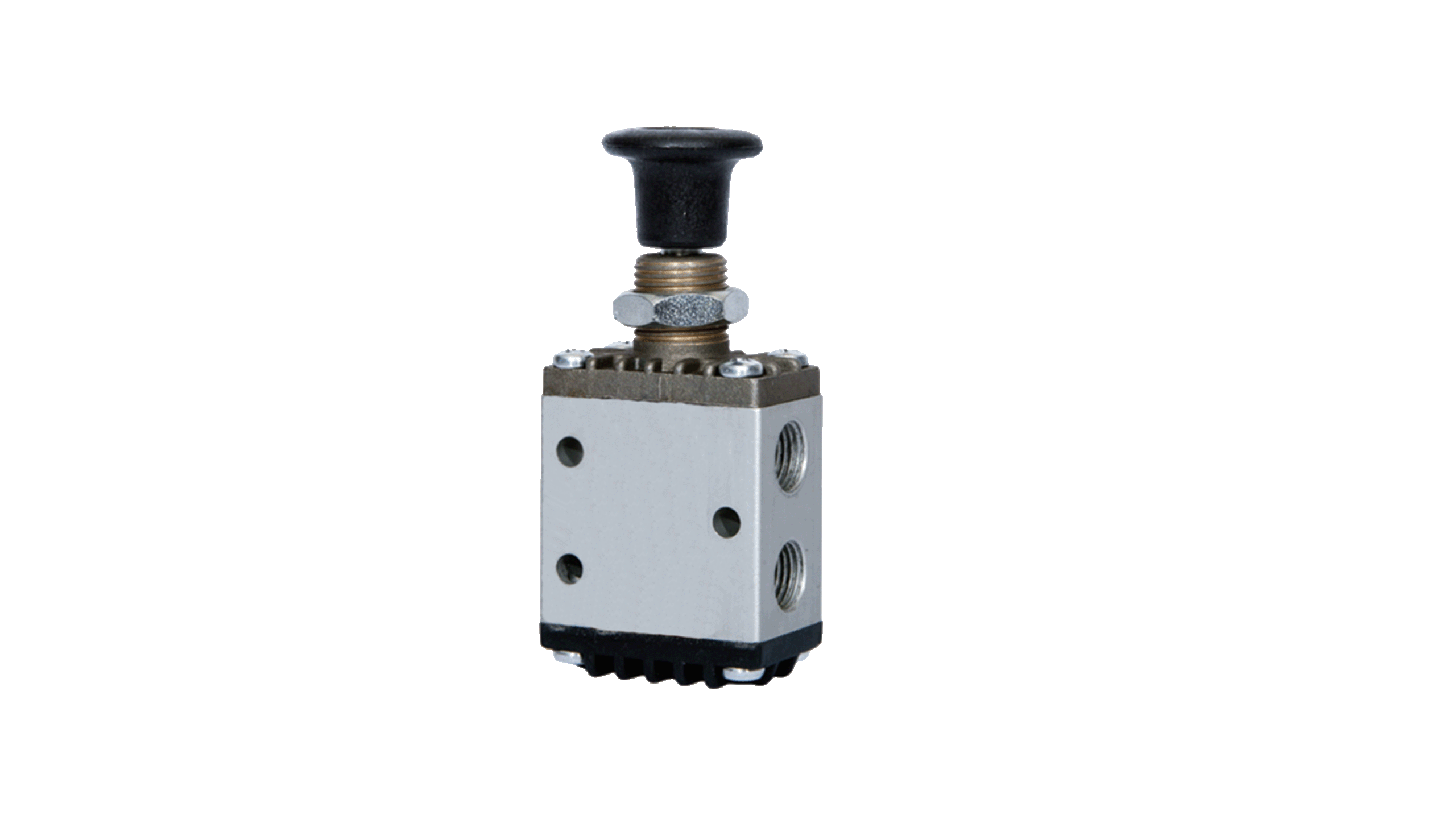

Air Valves Pull Type
