detail pneumatic controls
| Code | Product Type | Max. Pressure Bar | Air Inlet | Air Outlet | Air Exhaust | Temperature | Permissible Distance (mm) | Weight Kg |
|---|---|---|---|---|---|---|---|---|
| 6432BVL | Ball Valve Long | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | Min. 0-Max.10 | 0,32 |
| 6432BVS | Ball Valve Short | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | Min. 0-Max.10 | 0,20 |
| 6432SS | 3x2 Cam-Operated Spring Valve | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | Min. 0-Max.10 | 0,20 |
| 6452SS | 5x2 Cam-Operated Spring Valve | 10 | G1/4 | G1/4 | G1/4 | - 40~+80 | Min. 0-Max.10 | 0,26 |
Technical Specifications

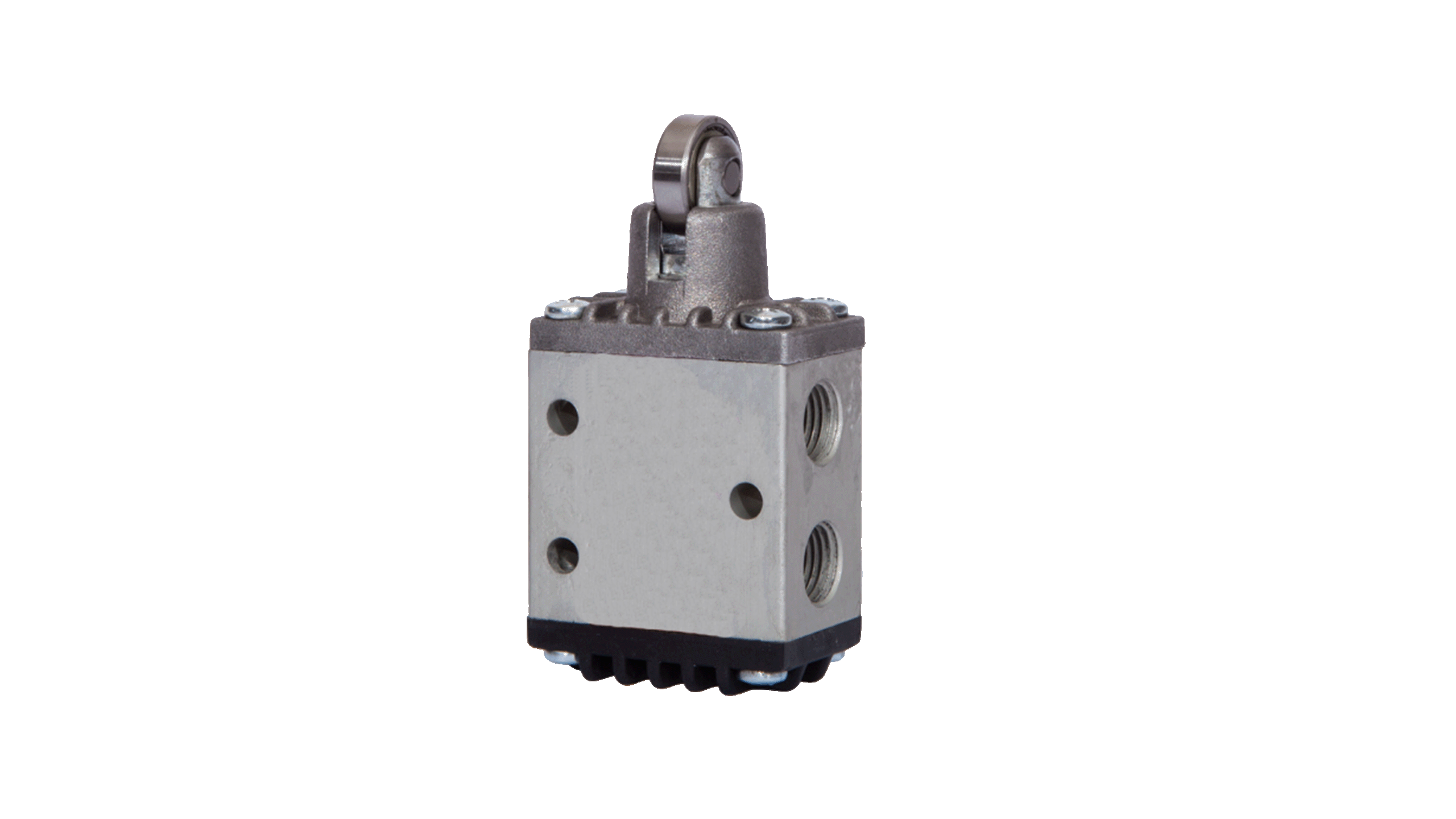

Air Valves Ball and Cam-Operated Type
